Ultrasonic Lace Sewing Machine

TC-60

TC-100

TC-150

TC-200

TC-300

TC-60

Item

Ultrasonic Lace Sewing Machine(CE qualified)

Model

TC-60

Power Source

220V /110V

Inout Power

2000W (3 power adjustable)

Output Frequency

20KHZ

Working Speed

0-20M/minute

Roller Size

23MM-60MM Ø50MM
(1 inch and 2 inch standard roller)

Dimension of packing

125CM *60CM*130CM

Gross Weight

140KG

Working Temperature

-10℃-28℃

Pressure System

Air type or manual type

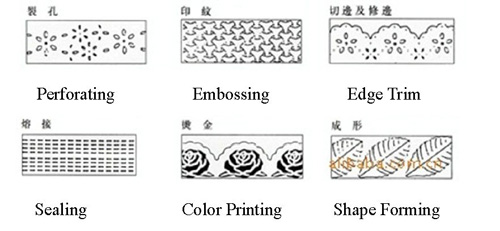

1.   Use ultrasonic energy to cut, weld, seal, seam, perforating, emboss, stitch, slit, form, color and folding.
2.   Eliminating traditional needle and thread.,reduce material cost and more high speed.
3.   No dissipated edge, wrinkle and shrinkage.,Can print color on the laces with colored paper.
4.   Continuous working for mass production .
5.   No smoke, spark and danger during operation.
6.   Easy operation realizes lowest labor cost;double motors structure.
7.   Accurate and durable alloy rollers are designed by computer aid made with sculptured molds.
8.   Thousands of pattern roller designs available,easily to replace.



Fabrics of synthetic composition over 65%, polyester, nylon, TC, sponge, non-woven fiber ,satin, Thermo plastic films.and other synthetic fibre material

Lace clothing,synthetic filter bag, surgical gown , hair decorations,raincoat, tablecloth, chair cover, bedspread, pillowcase, quilt cover,handkerchief, christmas ribbon,disposable operating coat,,hook and loop cutting,pocket filter bag,non woven bag making,shower curtain,pp woven sealing,etc

TC-100

Item Ultrasonic Lace Sewing Machine(CE qualified)
Model TC-100
Power Source 220V /110V
Input Power 2500W (3 power adjustable)
Output Frequency 20KHZ
Working Speed 0-18M/minute
Roller Size 50MM-100MM (2 inch to 4 inch)
Diameter:Ø50MM
Dimension of packing 127CM *65CM*130CM
Gross Weight 160KG
Working Temperature -10℃-28℃
Pressure System Air type or manual type

1.   Use ultrasonic energy to cut, weld, seal, seam, perforating, emboss, stitch, slit, form, color and folding.
2.   Eliminating traditional needle and thread.,reduce material cost and more high speed.
3.   No dissipated edge, wrinkle and shrinkage.,Can print color on the laces with colored paper.
4.   Continuous working for mass production.
5.   No smoke, spark and danger during operation.
6.   Easy operation realizes lowest labor cost;double motors structure.
7.   Accurate and durable alloy rollers are designed by computer aid made with sculptured molds.
8.   Thousands of pattern roller designs available,easily to replace.

Fabrics of synthetic composition over 65%, polyester, nylon, TC, sponge, non-woven fiber ,satin, Thermo plastic films.and other synthetic fibre material.

Lace clothing,synthetic filter bag, surgical gown ,hair decorations, packaging satin,raincoat, tablecloth, chair cover, bedspread, pillowcase, quilt cover,handkerchief, christmas ribbon,disposable operating coat,,hook and loop cutting,pocket filter bag,non woven bag making,shower curtain,etc

TC-150

Item

Ultrasonic Lace Sewing Machine(CE qualified)

Model

TC-150

Power Source

220V /110V

Input Power

2500W (3 power adjustable)

Output Frequency

20KHZ

Working Speed

0-18M/minute

Roller Size

50MM-100MM (2 inch to 6 inch)
Diameter:Ø50MM

Dimension of packing

127CM *65CM*130CM

Gross Weight

165 KG

Working Temperature

-10℃-28℃

Pressure System

Air type or manual type

1.   Use ultrasonic energy to cut, weld, seal, seam, perforating, emboss, stitch, slit, form, color and folding.
2.   Eliminating traditional needle and thread.,reduce material cost and more high speed.
3.   No dissipated edge, wrinkle and shrinkage.,Can print color on the laces with colored paper.
4.   Continuous working for mass production.
5.   No smoke, spark and danger during operation.
6.   Easy operation realizes lowest labor cost;double motors structure.
7.   Accurate and durable alloy rollers are designed by computer aid made with sculptured molds.
8.   Thousands of pattern roller designs available,easily to replace.


Fabrics of synthetic composition over 65%, polyester, nylon, TC, sponge, non-woven fiber ,satin, Thermo plastic films.and other synthetic fibre material

Lace clothing,synthetic filter bag, surgical gown ,hair decorations, packaging satin,raincoat, tablecloth, chair cover, bedspread, pillowcase, quilt cover,handkerchief, christmas ribbon,disposable operating coat,,hook and loop cutting,,non woven bag making,shower curtain,etc

TC-200

Item

Ultrasonic Lace Sewing Machine(CE qualified)

Model

TC-200

Power Source

220V /110V

Input Power

2500W (3 power adjustable)

Output Frequency

20KHZ

Working Speed

0-18M/minute

Roller Size

50MM-200MM
Diameter:Ø50MM

Dimension of packing

127CM *65CM*130CM

Gross Weight

170 KG

Working Temperature

-10℃-28℃

Pressure System

Air type or manual type

1.   Use ultrasonic energy to cut, weld, seal, seam, perforating, emboss, stitch, slit, form, color and folding.
2.   Eliminating traditional needle and thread.,reduce material cost and more high speed.
3.   No dissipated edge, wrinkle and shrinkage.,Can print color on the laces with colored paper.
4.   Continuous working for mass production.
5.   No smoke, spark and danger during operation.
6.   Easy operation realizes lowest labor cost;double motors structure.
7.   Accurate and durable alloy rollers are designed by computer aid made with sculptured molds.
8.   Thousands of pattern roller designs available,easily to replace.




Fabrics of synthetic composition over 65%, polyester, nylon, TC, sponge, non-woven fiber ,satin, Thermo plastic films.and other synthetic fibre material

Lace clothing,synthetic filter bag, surgical gown ,hair decorations, packaging satin,raincoat, tablecloth, chair cover, bedspread, pillowcase, quilt cover,handkerchief, christmas ribbon,disposable operating coat,,hook and loop cutting,,non woven bag making,shower curtain,etc

TC-300

Model TC-300
Input Power 3000W
Output Frequency 15Khz
Working Speed 0-15M/minute
Roller Size 50mm-300mm, Ø 50mm-90mm
Gross Weight 200Kg
Packing Size 127CM*62CM*127CM
Horn Size 300MM*25MM
Structure Gantary Type

1.   Seamming,trimming and embossing without glue, thread or other consumables.
2.   More faster and cost effective than traditional sewing machine and adhesive ways.
3.   Eliminates fraying or unraveling of bonded edges and seams.
4.   Multifunctional and thousands of designs available.
5.   Requires minimum training and maintenance.
6.   Super strong ultrasonic power meets the needs of different fabric thickness.

Ribbon slitting, dust mask body cutting,,insole, disposable gloves,etc
